Naneos Partector

The Swiss made Naneos Partector is the world's smallest nanoparticle detector and is now being offered in the Americas through CH Technologies (USA) Inc. It is based on a novel non-contact electrical detection principle which needs nearly no maintenance. For nanoparticles, it measures lung deposited surface area (LDSA), a metric typically associated with adverse effects on respiratory health.

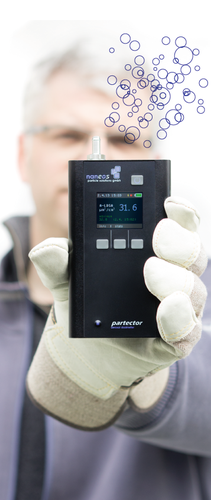

The detector is miniature and lightweight making for a truly portable personal sampler. Measurements taken with the Partector are hassle free and result in an ergonomic experience. Battery life is exceptional, start up time is minimal, and the device can be used in any orientation. In addition to the Partector's ease of use is its ability to provide sampling and LDSA measurements over a wide range of particle sizes.

The device is battery operated and self-contained with a removable SD memory card, and can be charged over a standard USB cable. It has a color display with system status, minute, hour and day values plotted in real time. It can be used for workplace sampling. A second version has a sample port for collecting nanoparticles onto standard Transmission Electron Microscopic (TEM) grids for later analysis and examination of the collected matter. For inhalation toxicology studies, an OEM version allows for an external pump and real time data to control nanoparticle exposure generation in instruments like spark generators. It can also be adapted to sampling beside other instruments.

Partector Brochure     Presentation
  • LDSA measurement with a time resolution of 1 second (internal instrument time constant 4s; faster on request)
  • Wide concentration range, from 1-20,000 µm²/cm³
  • Wide particle size range, from 10 nm to 10 µm
  • Device size: 134x78x29 mm - fits in a typical shirt pocket
  • Weight: 400 grams
  • Flow rate: 0.5 lpm
  • Internal rechargeable Lithium-Ion battery, run time typically 20 hours in new devices
  • Data storage on a µSD-card (enough space for many years of data)
  • Graphical display
  • High concentration alarm with adjustable threshold
  • Includes a Java data analysis tool that runs on all major operating systems
  • Aerosol research
  • Environmental & climate studies
  • Ambient monitoring
  • Indoor & workplace air quality measurements
  • Personal exposure
  • Partector
  • TEM Sampler
