Partector TEM

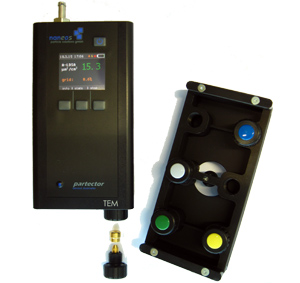

The Naneos Partector TEM sampler is the perfect marriage between simplicity and power: You can use it as a simple survey instrument to quickly identify nanoparticle sources in workplaces. You can also use it to sample particles directly to a standard transmission electron microscope (TEM) grid. The TEM is the most powerful analytical technique when it comes to single particle analysis. The Partector TEM gives the most capability if you have the supplementary tools such as a TEM/SEM microscope for further looking at particle size distributions and particle morphology and/or analytical instruments for chemical composition of the sampled particles.

The Partector TEM allows you to assess workplace safety comprehensively with a single instrument. The Partector TEM sampler is the only nanoparticle sampler that can determine the coverage of the sample online, and stop sampling when the optimal coverage is reached. It is an integrated measurement that allows one to survey first, then sample only when necessary. Since the TEM deposition mechanism is controlled and monitored by the concentration detected, you will never have empty or overloaded samples again. Utilizing a Google Earth Java tool it can show where concentrations were measured.






TEM Brochure

  Applications

TEM Efficiency
  • LDSA concentration range: from 0 - 20,000 µm²/cm³
  • High time resolution of 1 second (faster on request)
  • Wide particle size range, from 10 nm to 10 µm
  • Device size: 142x78x29mm - fits in a typical shirt pocket
  • Weight: 430 grams
  • Flow rate: 0.45 lpm
  • Electrostatic deposition of particles on standard 3.05mm TEM grids
  • Sampling efficiency: approximately 3% at 50nm
  • 6 exchangeable grid holders
  • Automatic determination of optimal sampling time, device stops sampling when grid has optimal coverage
  • Internal rechargeable Lithium-Ion battery, run time typically 10 hours
  • Data storage on a µSD-card (enough space for many years of data)
  • Graphical display
  • High concentration alarm with adjustable threshold
  • Includes a Java data analysis tool that runs on all major operating systems
  • Miniature & Lightweight
  • Easy to use push-button sampling
  • TEM grids can be exchanged in the field easily with 6 grid holders
  • Automatic determination of the optimal sampling time - because it measures the nanoparticle concentration, it knows when to stop sampling.
  • Online display of current sample coverage
  • Google Earth Java tool to show where concentrations were measured
  • Aerosol research
  • Filter Testing
  • Environmental & climate studies
  • Ambient monitoring
  • Indoor & workplace air quality measurements
  • Personal exposure
